C2 C0 C3 C4 6202ZZ Ball Bearing Z1V1 Z2V2 High Speed Precision Bearings

Name: C2 C0 C3 C4 6202ZZ Ball Bearing Z1V1 Z2V2 High Speed Precision Bearings
Brand: BUGAO
Price: 1 USD

Wholesale C2 C0 C3 C4 6202ZZ Ball Bearing Z1V1 Z2V2 High Speed Precision Bearings from china suppliers

Brand Name : BUGAO

Model Number : 6202ZZ 6202-2RS

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1,000 pcs

Price : Negotiable

Payment Terms : T/T,L/C,Western Union

Supply Ability : 30,000,000 pcs per year

Delivery Time : 20 to 30 days

Packaging Details : Single Packing, Industrial/Tube Packing

Bearing Name : 6202ZZ Ball Bearing

Material : Bearing Steel, Carbon Steel, etc

Precision : P0, P6, P5, P4

Clearance : C2, C0, C3, C4

Specification : Open, Z, ZZ, RZ, 2RZ, RS, 2RS

Closures : Open, sealed, shielded

Row Number : Single Row

Noise &Vibration : Z1V1, Z2V2, Z3V3, Z4V4

HS Code : 8482102000

OEM Service : Customization Welcomed

Contact Now

6202ZZ High Precision Ball Bearings For Household Industrial Motors

Deep groove ball bearings: versatile for radial and axial loads. Deep groove ball bearings are the most widely used rolling bearings. Easy to set up, self-holding and insensitive to maintenance. Deep groove ball bearings are available in a multitude of sizes and designs.

Kent bearings have the advantages of high speed, low noise, high precision and long life. The 20-year source factory always provides you with reliable products and services.

6202-2RS (double rubber selaed)

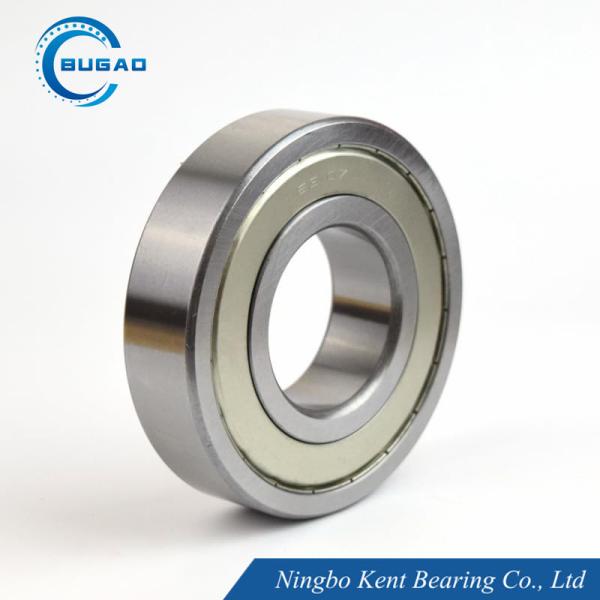

6202 ZZ (double metal sealed)

C2 C0 C3 C4 6202ZZ Ball Bearing Z1V1 Z2V2 High Speed Precision Bearings

6200 Series Bearings Parameters

Basic Bearing No.	Bore d		Outer Diameter D		Width W		Radius r		Basic Load Rating KN		Maximum Run out Speed		Weight kg/pc
	mm	inch	mm	inch	mm	inch	mm	inch	Dynamic	Static	Grease	Oil
									Dynamic	Static	Grease	Oil
									C	C_O	r/min	r/min
627	7	0.2756	22	0.8661	7	0.2756	0.3	0.012	3.35	1.4	26000	34000	0.013
628	8	0.3149	24	0.9448	8	0.3149	0.3	0.012	4	1.59	24000	32000	0.017
629	9	0.3543	26	1.0236	8	0.3149	0.3	0.012	4.55	1.96	22000	30000	0.02
6200	10	0.3937	30	1.1811	9	0.3543	0.6	0.024	5.1	2.39	19000	26000	0.032
6201	12	0.4724	32	1.2598	10	0.3937	0.6	0.024	6.1	2.75	18000	24000	0.037
6202	15	0.5906	35	1.3780	11	0.4331	0.6	0.024	7.75	3.6	17000	22000	0.045
6203	17	0.6693	40	1.5748	12	0.4724	0.6	0.024	9.6	4.6	16000	20000	0.066
6204	20	0.7874	47	1.8504	14	0.5512	1.0	0.039	12.8	6.65	14000	18000	0.106
6205	25	0.9843	52	2.0470	15	0.5906	1.0	0.039	14	7.85	12000	16000	0.128
6206	30	1.1811	62	2.4409	16	0.6299	1.0	0.039	19.5	11.3	10000	13000	0.199
6207	35	1.3780	72	2.8346	17	0.6693	1.1	0.043	25.7	15.3	8800	10000	0.287
6208	40	1.5748	80	3.1496	18	0.7087	1.1	0.043	29.1	17.8	7700	9200	0.367
6209	45	1.7717	85	3.3465	19	0.7480	1.1	0.043	32.5	20.4	6800	8200	0.416
6210	50	1.9685	90	3.5433	20	0.7874	1.1	0.043	35	23.2	6100	7300	0.462
6211	55	2.1654	100	3.9370	21	0.8268	1.5	0.059	43.5	29.2	5500	6600	0.602
6212	60	2.3622	110	4.3307	22	0.8661	1.5	0.059	52.5	36	5000	6000	0.789
6213	65	2.5591	120	4.7244	23	0.9055	1.5	0.059	58.5	40.5	4800	5800	0.99
6214	70	2.7559	125	4.9213	24	0.9449	1.5	0.059	63.7	45	4600	5600	1.1
6215	75	2.9528	130	5.1181	25	0.9843	1.5	0.059	68.9	49	4400	5400	1.2

Wide Applications of 6200 Deep Groove Ball Bearings

C2 C0 C3 C4 6202ZZ Ball Bearing Z1V1 Z2V2 High Speed Precision Bearings

Customization Welcomed:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

Deep ball bearings will be packed securely before shipping out, we provide different packing methods.

Bearings packed individually: single box+carton+pallet), or
Industrail Packing: packed in a tube + carton + pallet
Packed as customization packing
Lead time: 15-30 days
Shipping method is negotiable.

C2 C0 C3 C4 6202ZZ Ball Bearing Z1V1 Z2V2 High Speed Precision Bearings

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50
